Description

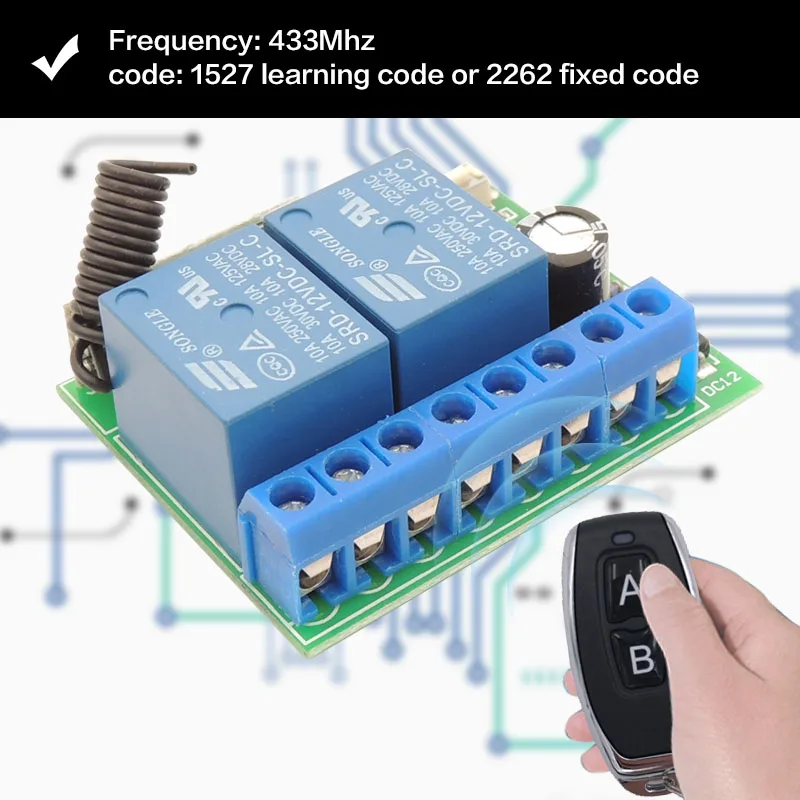

433MHz Universal Wireless Remote Control DC 12V 2CH rf Relay Receiver and Transmitter for Universal Garage door and gate Control
-
Working Voltage : DC 12V
-
Input vlotage : 1~250V
-
Output vlotage : 1~250V
-
Quiescent Current : <5MA
-
Max current : 10A
-
Max load : 2200W
-
RF frequency : 433MHz
-
Working temperature : -30~+80
-
Receiving Sensitivity : >97dbm
-
Amount of storage remote controls : 25 pieces
-
Support encoding : 1527 Leaning code/2262 fixed code
-
RF Operating mode : ASK superheterodyne wireless reception
-
Receiving range : Open space is more than 50 meters
-
Remote operating mode : Momentary Mode /Toggle Mode /Latched Mode

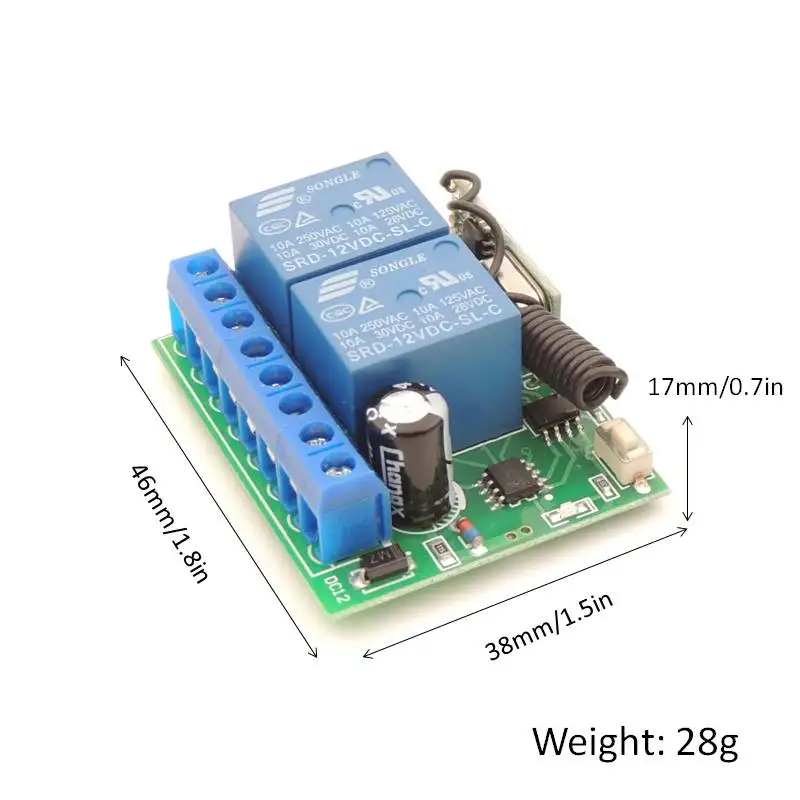

Small Size,Take up less space
Wide Range of Uses
Super Stable RF Output
Perfect Craft Detail Control

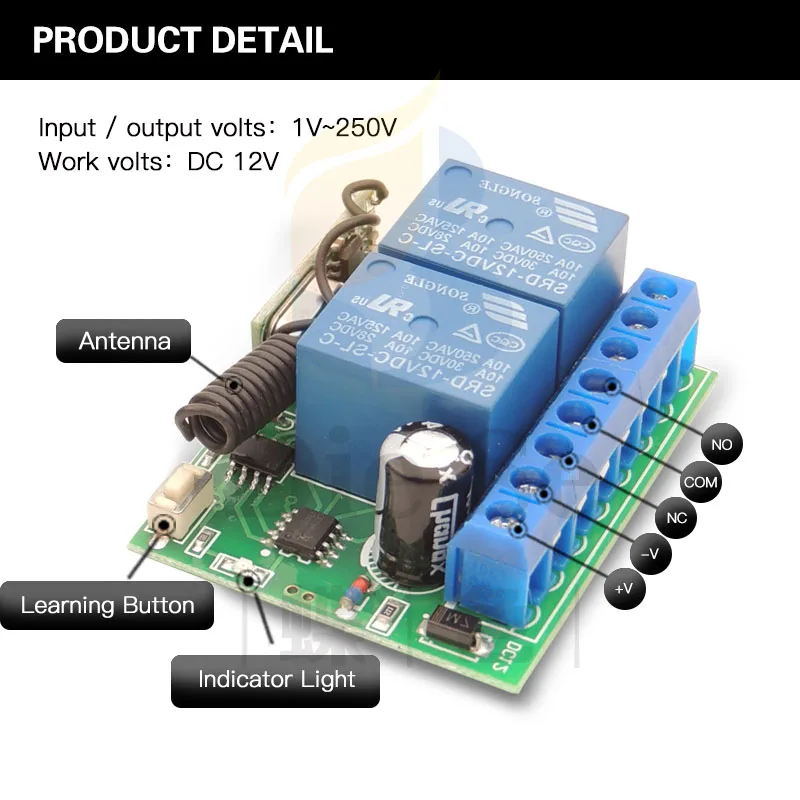

NO : Normal open COM : Common NC : Normal closed
Perfect Craft Detail Control
NO : Normal open COM : Common NC : Normal closed
Package include

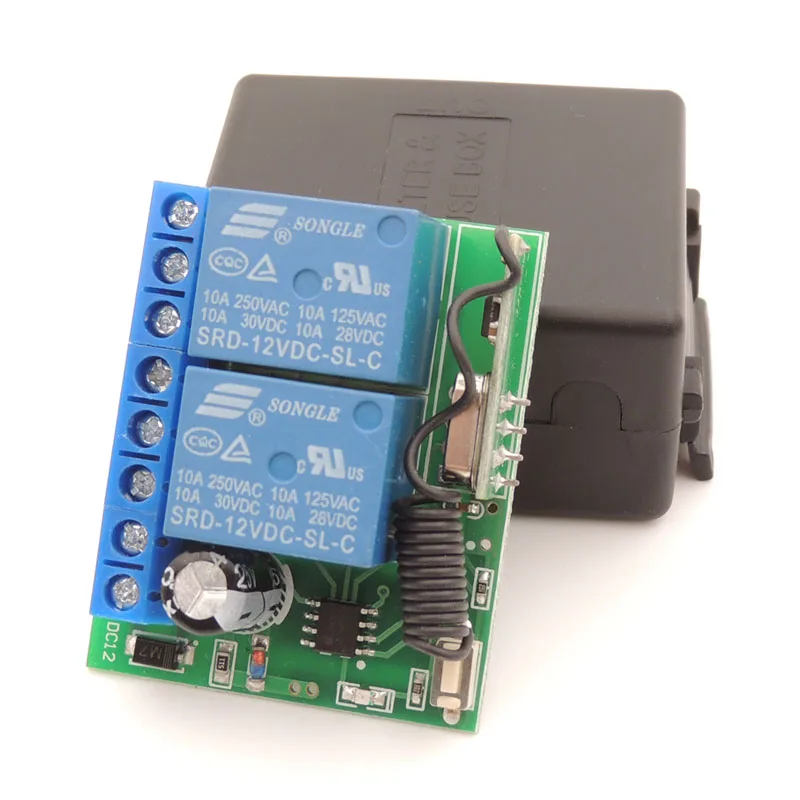

Receiver module ( include Shell )

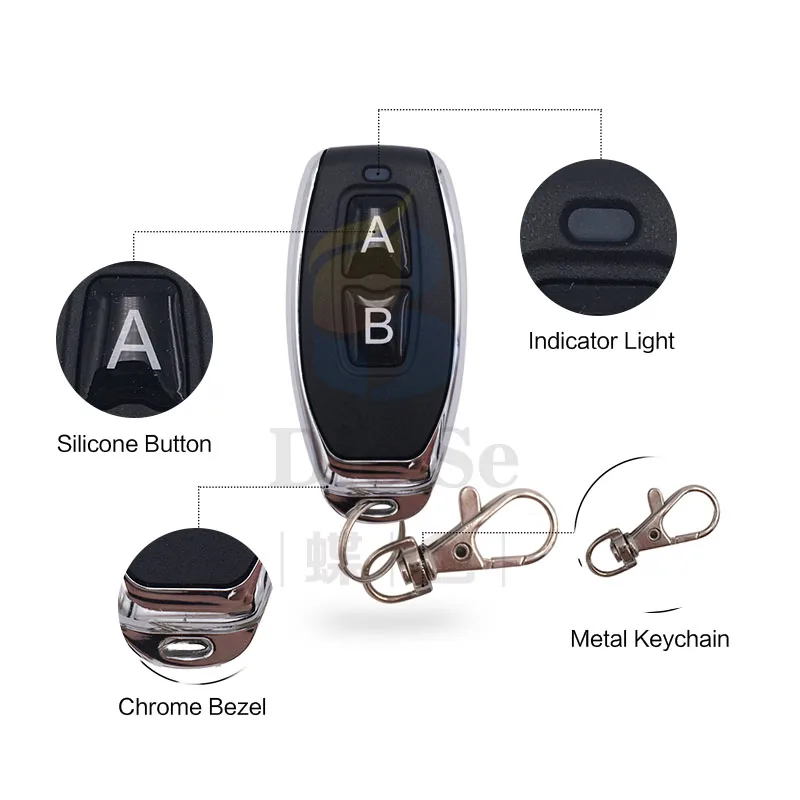

Remote Control (include battery )
Product Manual
Remote Control (include battery )
Product Manual
Wiring Diagram
This receiver can work with lamps,bulbs,lights,motor,etc.The receiver itself needs DC 12 V power.And there are two different wirings depends on whether there is an external power too.
Operating Mode
You can match the Transmitter with the Relay Receiver Module in 3 modes.
Momentary Mode:
1. Press and hold one button, relay will turn on;
2. Release the button, this relay will turn off.
Toggle Mode:
1. Press button "A", relay will turn on;
2. Press button "A" again, this relay will turn off.
1. Press button "A", relay will turn on;
2. Press button "A" again, this relay will turn off.
Delete the existing data about operating modes
Press the learning button (on the Receiver) 8 times. The existing data will be deleted succeed.
Set Up
Set up
Set up(Momentary)
1. Press the learning button(on the Receiver) once. the indicatior lights up;
2. Press one button on the remote control. Wait for 3 seconds.Succeed.
Set up(Toggle)
1. Press the learning button(on the Receiver) twice . the indicatior lights up;
2. Press one button on the remote control. Wait for 3 seconds.Succeed.
2. Press one button on the remote control. Wait for 3 seconds.Succeed.
On this products details page, there is a demonstration video available.
*If you do not understand clearly. Please send us a message to let us know. We will do our best to service each of our customers. Enjoy your shopping!*
